3 LOOP SPINNING COASTER
View ride →
39.93 x 20.67 mFootprint
14.78 mHeight
14, 7 carsSeats
approx. 360Hourly capacity
Technical Specifications
| Footprint | 39.93 x 20.67 m (131’0’’ x 67’10’’) |
|---|---|
| Height | 14.78 m (48’6’’) |
| Track length | 260 m (853’) |
| Max speed | 14 m/s (45.9 ft/s) |
| Seats | 14, 7 cars |
| Hourly capacity | approx. 360 |
| Motive power | 235 kw |
| Standard lighting | 9 kw |
| Packing & transport | approx. 13/15 trailers |
Roller Coaster Rides

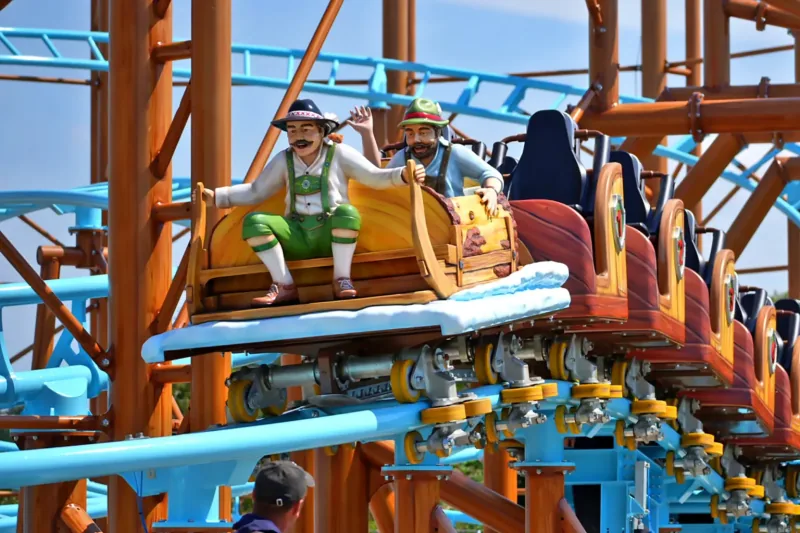

Family launch l
Family launch l is a roller coaster ride designed, welded and assembled by Henan Xinlong Amusement Equipment Co., Ltd. (XL Rides) at our factory in Zhengzhou, Henan, China. The machine offers a footprint of 39.93 x 20.67 m (131’0’’ x 67’10’’), an overall height of 14.78 m (48’6’’), 14, 7 cars riders per cycle, an hourly capacity of approx. 360 and a top speed of 14 m/s (45.9 ft/s).
Why Buy From XL Rides
- Self-supporting base — no civil foundations on most models
- Customizable layout, length and ride theme
- Certified steel structure with 100% NDT welding inspection
- Family, spinning and thrill configurations available
- Compact footprints for FECs, parks and travelling shows
- Factory load test and 24–72 h trial run before packing
Overview
About the Family launch l
Family Launch L Coaster is a type of roller coaster that is a fast-track one: the ride starts with a high amount of acceleration via a series of high-performance friction wheels along the launch track. This mode of acceleration is state-of-the-art technology for family-friendly launch coasters. Launched coasters feature improved speed and acceleration when compared to traditional chain or cable-lift coasters.
Every unit is factory-tested under load before packing. Layouts, themes, colors, capacities and voltage standards (380V/415V/220V, 50/60 Hz) are configurable, and sea-worthy packing with pre-calculated container volume is standard. We ship worldwide with installation supervision and operator training available on request.
Included With Every Order
- Complete ride structure, drive and control systems, lighting package
- Foundation bolts, installation manual and wiring diagrams
- Start-up spare parts kit for first-season operation
- English documentation, CE-aligned certificates on request
- Remote video support during installation; engineers available worldwide
Get Factory Price for the Family launch l
Reply within 24 hours on working days.
FAQ
Family launch l — Frequently Asked Questions
What are the dimensions of the Family launch l?
This model requires 39.93 x 20.67 m (131’0’’ x 67’10’’) with an overall height of 14.78 m (48’6’’). A safety perimeter is added around the ride; exact layout drawings are provided with your quotation.
How many riders can the Family launch l carry?
The Family launch l carries 14, 7 cars per cycle and delivers approx. 360 in typical operation.
Can the Family launch l be customized to my park theme?
Yes. Colors, decorative panels, character sculptures, lighting shows and ride capacity are all produced in-house. Send reference images or your park mascot — our design team returns renders for approval before manufacturing.
What is included in the shipment?
The complete ride including structure, drive and control systems, lighting, operator panels, foundation bolts, installation manual, and a start-up spares kit. Packing volume: approx. 13/15 trailers.
How is installation and commissioning handled?
We provide step-by-step installation drawings and video guidance at no cost. For most models we can dispatch English-speaking engineers to supervise or fully erect the ride, followed by commissioning and operator training until your team rides independently.
